Selection of cable tray type and variety

電纜橋架，簡而言之是安裝在建筑物外露天的橋架，全部零件均需進行鍍鋅處理。一共可分為槽式、托盤式和梯架式、網格式等結構，由支架、托臂和安裝附件等組成。

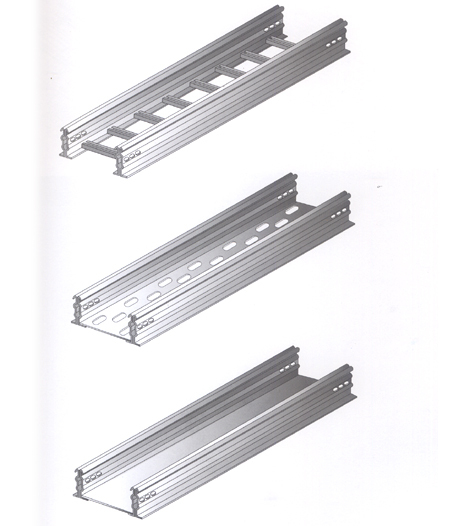

Cable tray, in short, is a tray installed in the open air outside the building, and all parts need to be galvanized. It can be divided into slot type, tray type, ladder type, mesh format and other structures, which are composed of support, bracket and installation accessories.

電纜橋架大致地可分為以下五類

Cable trays can be roughly divided into the following five categories

1、槽式電纜橋架

1. Trough type cable tray

槽式電纜橋架屬于全封閉型電纜橋架，該種電纜橋架能夠被廣泛適用于敷設計算機電纜、熱電偶電纜及其他高靈敏系統的控制電纜等，能夠很好地控制電纜的屏蔽干擾，對重腐蝕中環境電纜的防護起到了很好的作用與效果。

The grooved cable tray is a fully enclosed cable tray. This kind of cable tray can be widely used to lay computer cables, thermocouple cables and control cables of other highly sensitive systems. It can well control the shielding interference of cables and play a good role and effect in the protection of cables in heavily corrosive environment.

2、梯級式電纜橋架

2. Stepped cable tray

T型梯級式電纜橋架適用于直徑較大電纜的敷設，能夠同時適用于高、低壓動力電纜的敷設，是根據國內外有關資料而改進設計的，該類型的電纜橋架具有重量輕、成本低、散熱、透氣好等特性。

T-type stepped cable tray is applicable to the laying of cables with large diameter and can be applied to the laying of high and low voltage power cables at the same time. It is improved and designed according to relevant data at home and abroad. This type of cable tray has the characteristics of light weight, low cost, good heat dissipation and air permeability.

3、大跨距電纜橋架

3. Long span cable tray

該種大跨距電纜橋架一般是由拉擠玻璃鋼型材組裝而成，能夠適用于電力電纜、控制電纜、照明電纜及配件等。比鐵制橋架的使用壽命長并且安裝方便，成本低，不僅擁有切割方便，而且基本不需要維護。

The long-span cable bridge is generally assembled from pultruded FRP profiles, which can be applied to power cables, control cables, lighting cables and accessories. It has longer service life than iron bridge, convenient installation and low cost. It not only has convenient cutting, but also basically does not need maintenance.

4、組合式電纜橋架

4. Combined cable tray

該種電纜橋架是一電纜橋架系列中的二代產品，能夠廣泛地適用各項工程、各種單位、各種電纜的敷設。組合式電纜橋架只需生產彎通、三通等配件便能夠根據現場安裝任意轉向、變寬、分引上、引下。在任意部位、不需要打孔、焊接就可用管引出。既方便生產運輸、又方便安裝施工，是電纜橋架中理想的產品。

This kind of cable tray is the second generation product in a cable tray series, which can be widely used for the laying of various projects, various units and various cables. The combined cable tray only needs to produce bend, tee and other accessories, which can be turned, widened, led up and down arbitrarily according to the on-site installation. At any position, it can be led out by pipe without drilling and welding. It is not only convenient for production and transportation, but also convenient for installation and construction. It is an ideal product in cable tray.

5、托盤式電纜橋架

5. Tray type cable tray

該電纜橋架是石油、化工、輕工等方面應用廣泛的一種，具有很強的共同性，該種電纜橋架不僅僅適用于動力電纜的安裝，同時也能夠適合于控制電纜的敷設。

The cable bridge is widely used in petroleum, chemical industry, light industry and other fields, and has strong commonality. The cable bridge is not only suitable for the installation of power cables, but also suitable for the laying of control cables.

1、需屏蔽電氣干擾的電纜網路或有防護外部（如：有腐蝕液休，易燃粉塵等環境）影響的要求時，應選用（FB）類槽式復合型防腐屏蔽電纜橋架（帶蓋）

1. When the cable network that needs to shield electrical interference or there are requirements to protect the impact of external (such as corrosive liquid, flammable dust and other environments), the (FB) grooved composite anti-corrosion shielded cable bridge (with cover) shall be selected

2、強腐蝕性環境應采用（F）類復合環氧樹脂防腐阻燃型電纜橋架。托臂、支架也要選用同樣材料，提高橋架及附件的使用壽命，電纜橋架。在容易積灰和其它需遮蓋的環境或戶外場所宜加蓋板。

2. Class (f) composite epoxy resin anti-corrosion and flame retardant cable tray shall be used in highly corrosive environment. The same materials shall be selected for the supporting arm and support to improve the service life of the bridge and accessories and the cable bridge. Cover plate should be added in the environment or outdoor places where ash is easy to accumulate and other places to be covered.

3、除上述情況外，可根據現場還環境及技術要求選用托盤式、槽式、梯級式、玻璃防腐阻燃電纜橋架或鋼質普通型橋架。在容易積灰和其它需遮蓋的環境或戶外場所宜加蓋板。

3. In addition to the above conditions, tray type, trough type, step type, glass anti-corrosion and flame retardant cable tray or steel ordinary cable tray can be selected according to the site environment and technical requirements. Cover plate should be added in the environment or outdoor places where ash is easy to accumulate and other places to be covered.

4、在公共通道或戶外跨越道路段，底層梯級的底部宜加墊板或在該段使用托盤。大跨距跨越公共通道時，可根據用戶要求提高橋架的載荷能力或選用行架。

4. In the public passage or outdoor crossing road section, the base plate should be added at the bottom of the bottom step or the pallet should be used in this section. When crossing a public passage with a long span, the load capacity of the bridge can be improved or the traveling frame can be selected according to the user's requirements.

5、大跨距（>3m）要選用復合型橋架（FB）。

5. Composite bridge (FB) shall be selected for large span (> 3M).

6、戶外要選用復合環氧樹指橋架（F）。

6. Composite epoxy tree finger bridge (f) shall be selected for outdoor.
